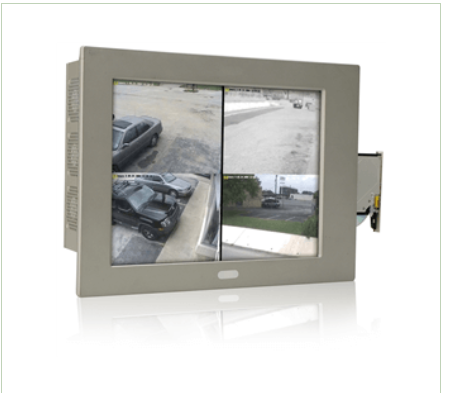

High brightness TFT-LCD panel with LED backlight

● Multiple storage options: 2.5"" SATA HDD, CF slot, and mSATA

● Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets

● Optional PCI / PCIe x1 expansion slot

● Optional slim type CD-ROM drive bay

● Robust aluminum front bezel and metal casing

● IP 66 compliant front panel for PPC-5170A-H61

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (over 4GB storage capacity)

• Hardware Spec.

  Spec Item	Description
  Display
  Backlight MTBF(hrs)	50000
  Brightness(cd/m2)	1280(W) x 1024(H)
  Contrast Ratio	800:1
  LCD Size	17"
  Max Resolution	350
  Environment
  Operating Temperature	-20°C ~ 60°C
  Storage Temperature	-30°C ~ 70°C
  Expansion Slots
  Expansion Slots	Either 1 x PCI slot or 1 x PCIe slot 1 x PCIe Mini card
  I/O Interface
  Audio Codec	Realtek ALC662 audio codec
  RAM	Two 204-pin DDR3 SO-DIMM slots (Max. 16GB)
  LCD
  LCD Color	16.7M
  Pixel Pitch (mm)	0.264(H) x 0.264(V)
  Viewing Angle (H-V)	170°/ 160°
  Other Features
  System Cooling	Active with fan
  Physical Characteristics
  Cutout Dimensions	426 x 331
  Dimensions (LxWxH) (mm)	452 x 356 x 115
  System
  Chipset	Intel® H61
  CPU	2nd/3rd generation Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® processor, up to TDP 65W CPU
  HDD	1 x 2.5” SATA HDD bay with anti-shock
  SSD	CF Type II, mSATA (SATA2 signal)
  Touch
  Touch Controller	DMC 9000
  Touch Screen	5-wire resistive type with RS-232 interface
  Weight
  Weight	8 kg / 12 kg
  I/O Interface
  I/O Interface	4 x RS-232
  	1 x RS-422/485
  	4 x USB2.0
  	2 x USB3.0
  	1 x Power Switch
  	1 x Mic
  	1 x VGA
  	4 x LAN((RJ-45) x2 /SFP fiber LAN x 2)
  	1 x AT/ATX Switch
  	1 x Line out
