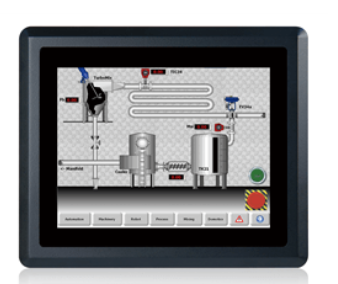

威强工业平板电脑PPC-F08B-BT
2018-09-12 16:14:59 来自:system
● 5.7”, 8” and 10.4” fanless industrial panel PC
● 2.0 GHz Intel® Celeron® J1900 quad-core processor or 1.58 GHz Intel® Celeron® N2807 dual-core processor
● Low power consumption DDR3L memory supported
● IP 65 compliant front panel
● 9 V~30 V wide DC input
● mSATA SSD suppoted
● Dual GbE for backup
● -10°C~50°C extended operating temperature
Hardware Spec.
| Spec Item | Description |
|---|---|
| Display | |
| Backlight MTBF(hrs) | 50000 |
| Brightness(cd/m2) | 500 |
| Contrast Ratio | 500:1 |
| LCD Size | 8”(4:3) |
| Max Resolution | 800(W) x 600(H) |
| Environment | |
| Humidity | 10% to 95% (non-condensing) |
| IP Level | Front IP 65 |
| Operating Temperature | -10°C~50°C (14°F~122°F) |
| Safety & EMC | CE & FCC Class A certified |
| Storage Temperature | -20°C~60°C (-4°F~140°F) |
| Expansion Slots | |
| Expansion Slots | 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal) 1 x Half-size PCIe Mini slot for Wi-Fi modules |
| I/O Interface | |
| I/O Ports and Switches | 1 x RJ-45 LAN port 1 x RS-232 COM port (DB-9 connector) (RI/5V/12V) 1 x RS-422/485 2 x USB 3.0 1 x 9 V~30 V DC lockable DC jack (2-pin) 1 x Audio port (line-out) 1 x Power switch |
| RAM | 2 x 204-pin DDR3L SO-DIMM slots (max. 8GB) |
| LCD | |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.2025 (H) x 0.0675 (V) |
| Viewing Angle (H-V) | 140° / 120° |
| Physical Characteristics | |
| Color | Black C |
| Construction | Aluminum front bezel |
| Cutout Dimensions | 207 x 154 |
| Dimensions (LxWxH) (mm) | 182.2 x 222.2 x 44 |
| Mounting | Stand, panel mount, rack mount, VESA 75x75 |
| Power | |
| Power adapter | 9V~30VDC |
| System | |
| CPU | Intel® Celeron® J1900 quad-core on-board SoC, 2GHz |
| SSD | mSATA |
| Touch | |
| Touch Screen | 5-wire resistive type flat touchscreen |
| Weight | |
| Weight | 1.17 kg |
| I/O Interface | |
| I/O Interface | 2 x LAN((GbE)) |
| 1 x Power Switch | |
| 1 x RS-232((RJ-45)) | |
| 1 x RS-422/485((DB-9)) | |
| 1 x Reset Button | |
| 2 x USB3.0 | |
| 1 x Power In((9-30V Lockable power jack)) | |
| 1 x Audio(((line-out))) | |
| 1 x AT/ATX Switch | |
